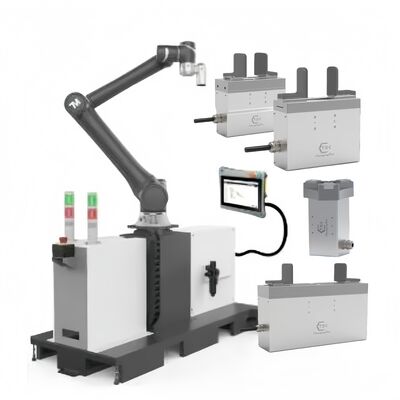

Techman TM5-700 TM5-900 AI Cobot CTPM2F40 CTPM2F40S CTPM2F60S CTPM2F120 CTPM3F10 6 Axis Industrial Robot Flat Hand Gripper

Techman TM5-700 TM5-900 AI Cobot CTPM2F40 CTPM2F40S CTPM2F60S CTPM2F120 CTPM3F10 6 Axis Industrial Robot Flat Hand Gripper

Nombre De Pièces: 1
Prix: US $12500.00 - 20000.00/ Set
Emballage Standard: Boîte en carton/Caisse en bois
Période De Livraison: 75 ~ 90 jours
Méthode De Paiement: T/T
Capacité D'approvisionnement: 200 ensembles par an
Informations détaillées
Lieu d'origine
Chine
Nom de marque
Techman Robot
Numéro de modèle
TM5-700
Tension:
DC 48V
puissance (w):
400W
Charge utile maximum:
6 kg
Vitesse typique:
1.1m/s
Répétabilité:
± 0,05 mm
Alimentation:
100-240VAC, 50-60Hz
Classification IP:
IP54 (bras de robot); IP32 (boîtier de commande)
Température:
0-50 ℃
Vitesse maximale:
4m / s
Atteindre:
900 mm
Quantité de commande min:
1
Prix:
US $12500.00 - 20000.00/ Set
Détails d'emballage:
Boîte en carton/Caisse en bois
Délai de livraison:
75 ~ 90 jours
Conditions de paiement:
T/T
Capacité d'approvisionnement:
200 ensembles par an
Description du produit
Product Overview

The Techman TM5-900 is a 6-axis collaborative robot with 900 mm reach and 6 kg payload. It includes an integrated vision system for object detection and location. The longer reach makes it ideal for tasks that need more workspace than the TM5-700, while keeping the same lightweight and safe design for human-robot collaboration.

Features
  • Built-in vision with 5MP color camera
  • Hand-guiding and intuitive teaching
  • TMflow graphical programming
  • Safety-rated design for collaborative work
  • Built-in I/O and communication protocols
  • No external vision PC needed
  • Flexible mounting options
Technical Specifications
Payload
6 kg
Reach
900 mm
Degrees of Freedom
6 axes
Repeatability
±0.05 mm
Maximum Speed
4 m/s (joint speed)
Vision
Integrated 5MP color camera, 1.5 m * 1.5 m working area
IP Rating
IP54
Power Consumption
~200 W average
Applications
  • Vision-guided pick and place
  • Machine loading/unloading
  • Assembly and testing
  • Packaging and sorting
  • Medium-range handling tasks
FAQ

Q: What's the difference from TM5-700?

A: TM5-900 has 900 mm reach vs 700 mm.

Q: Is vision accurate?

A: Yes – integrated camera handles real-time detection.

Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp:+8615121023088

Related Products
  • TM5-700 (shorter reach)
  • TM12 / TM14 (higher payload)
  • TM AI Cobot accessories
  • TMmobile platform
